DS-4S
4-bay docking station for SB CHARGER devices
Overview
The BETSO DS-4S is a unique 4-bay docking station designed for BETSO SB CHARGER devices. It seamlessly transforms up to four individual SB CHARGERs into a compact, powerful, efficient, and versatile quad smart battery charging station.
The DS-4S comes with a high-quality 240W AC-DC power adapter, providing maximum charging power for up to four SB CHARGERs simultaneously. Its main chassis, crafted from black anodized aluminum alloy, supports passive cooling of the chargers.
Tempered glass (unbreakable) panel with blue LED for power indication
Four USB-C connectors which deliver power to SB CHARGER devices
A locking mechanism secures the SB CHARGERs once inserted
Precise CNC milled black anodized aluminium chassis
Slots designed for easy sliding of the SB CHARGERs into place
Anti-slip feet prevent the DS-4S from sliding on flat surfaces

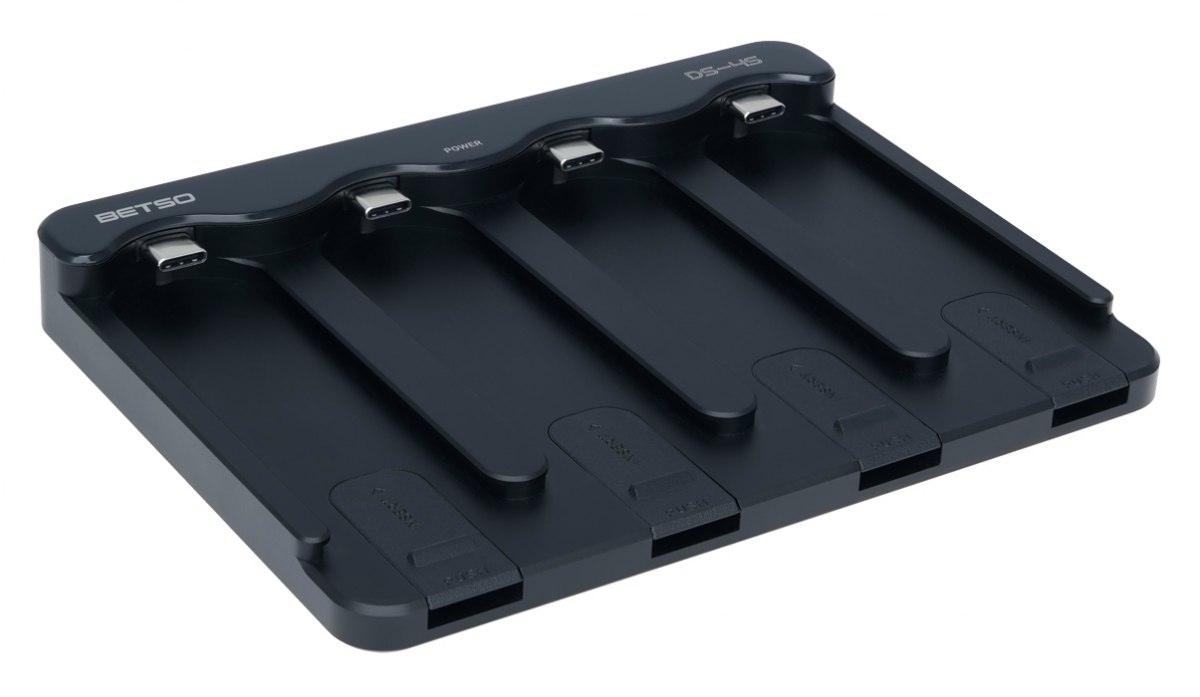

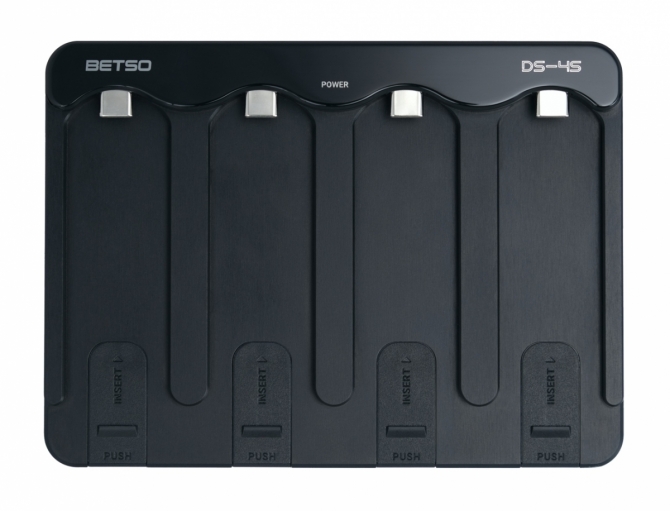

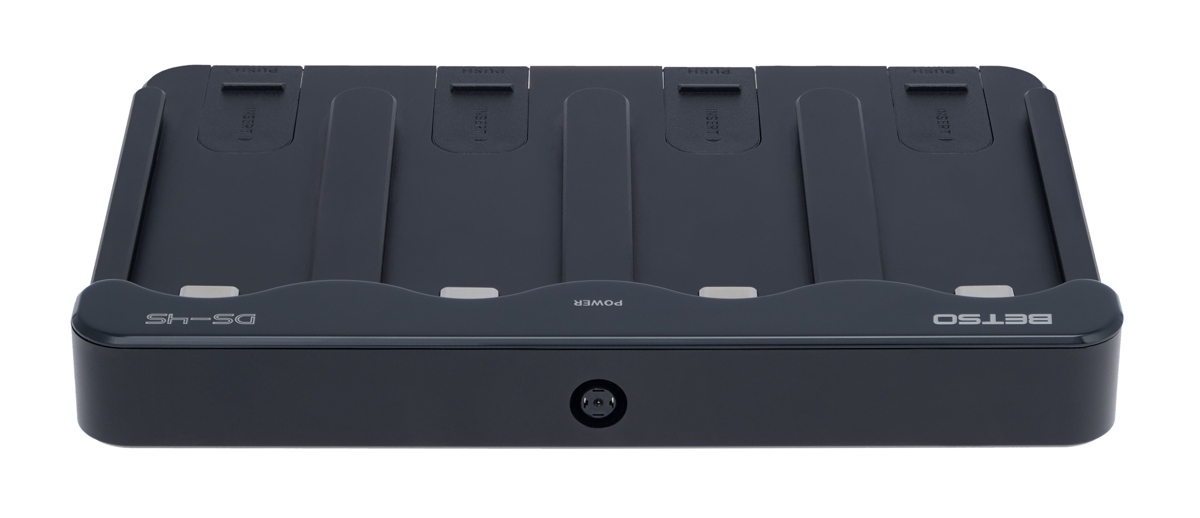

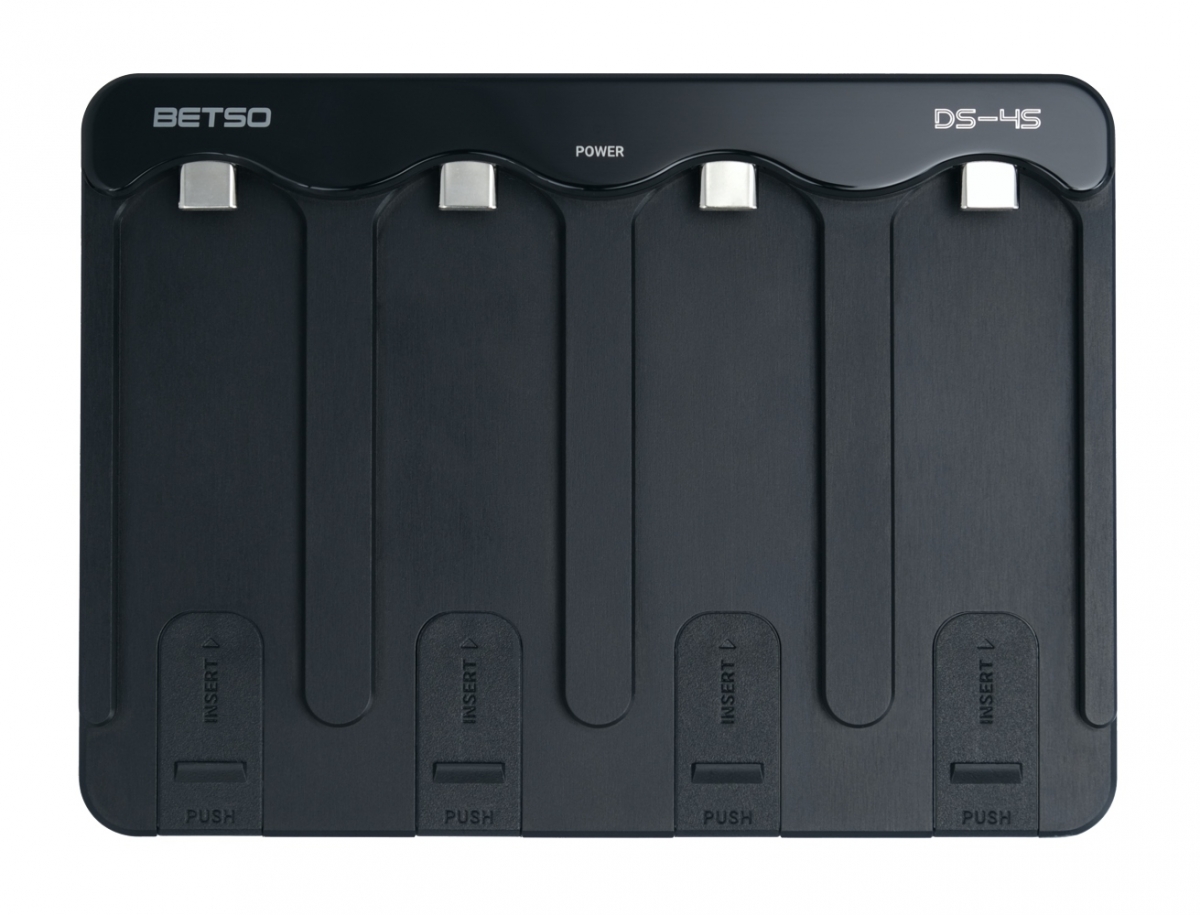

Photos
Included 240W power adapter
Technical specifications
Specifications of DS-4S
| Power indication | Blue LED |
| Chassis material | Black anodized aluminium alloy, tempered glass panel |
| Input connector | 7.4x5.0 mm |
| Antislip feets | Yes |
| Dimensions (w x h x d) | 103 x 140 x 19 mm (4.05" x 5.51" x 0.75") |
| Manufactured in the | Czech Republic |
Specifications of included power adapter
| Input voltage | 100-240V AC |
| Input frequency | 50/60 Hz |
| Output voltage | 20V |
| Output power | 240W max. |
| Efficiency | >85% |
| Input connector | C14 (standard IEC 60320) |
| Output connector | 7.4x5.0 mm |
| Cable length | 1.5m (4.9 feet) |
| Safety features | Over Current, Over Load, Over Temperature & Short Circuit Protection |
| Included accessory | Main cord with EU / US / UK plug (depending on location) |
| Dimensions of power adapter | 185 x 91 x 26 mm (7.3" x 3.6" x 1") |
Downloads
| User manual | |||
|---|---|---|---|
| User manual EN | 06.12.2024 | 250.87 KB | Downloads |
