DS-2S
2-bay docking station for SB CHARGER devices
Overview

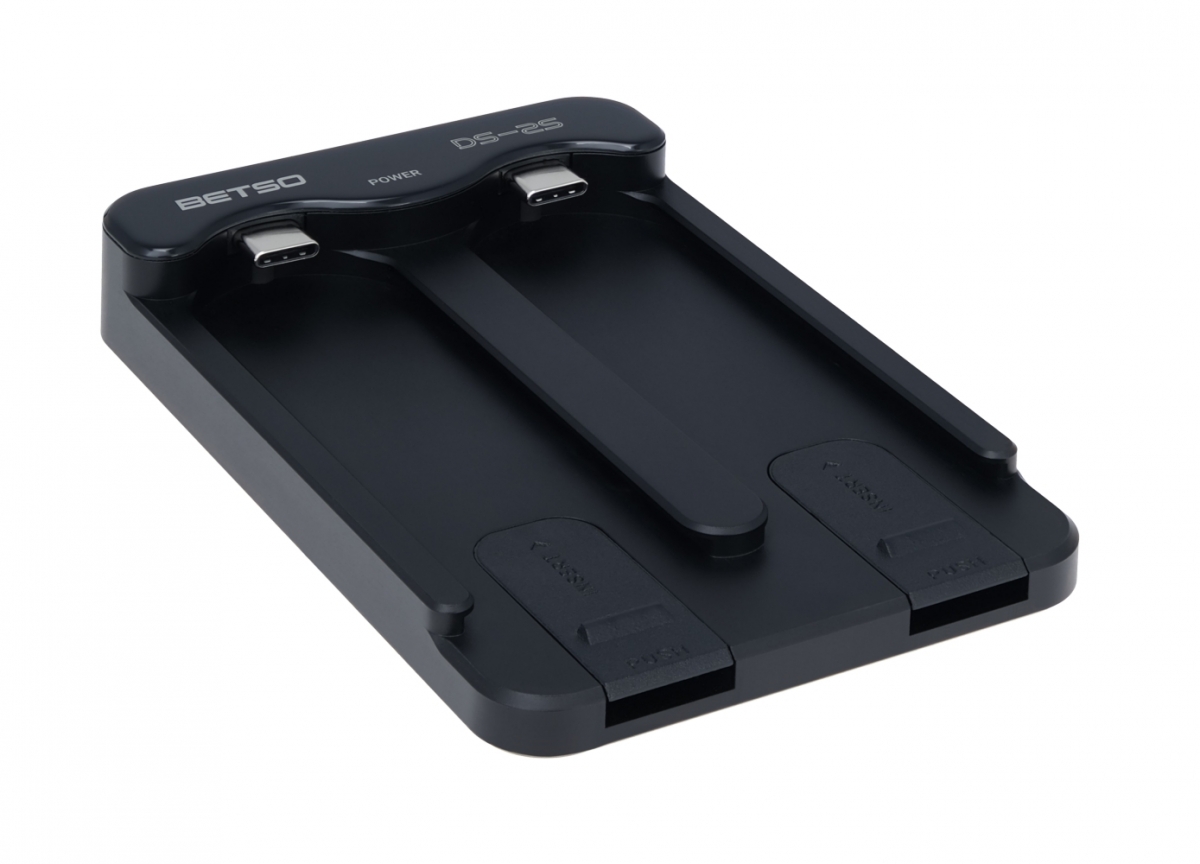

The BETSO DS-2S is a unique 2-bay docking station designed for BETSO SB CHARGER devices. It seamlessly transforms two individual SB CHARGERs into a compact, powerful, efficient, and versatile dual smart battery charging station.
The DS-2S comes with a high-quality 130W AC-DC power adapter, providing maximum charging power for up to two SB CHARGERs simultaneously. Its main chassis, crafted from black anodized aluminum alloy, supports passive cooling of the chargers.

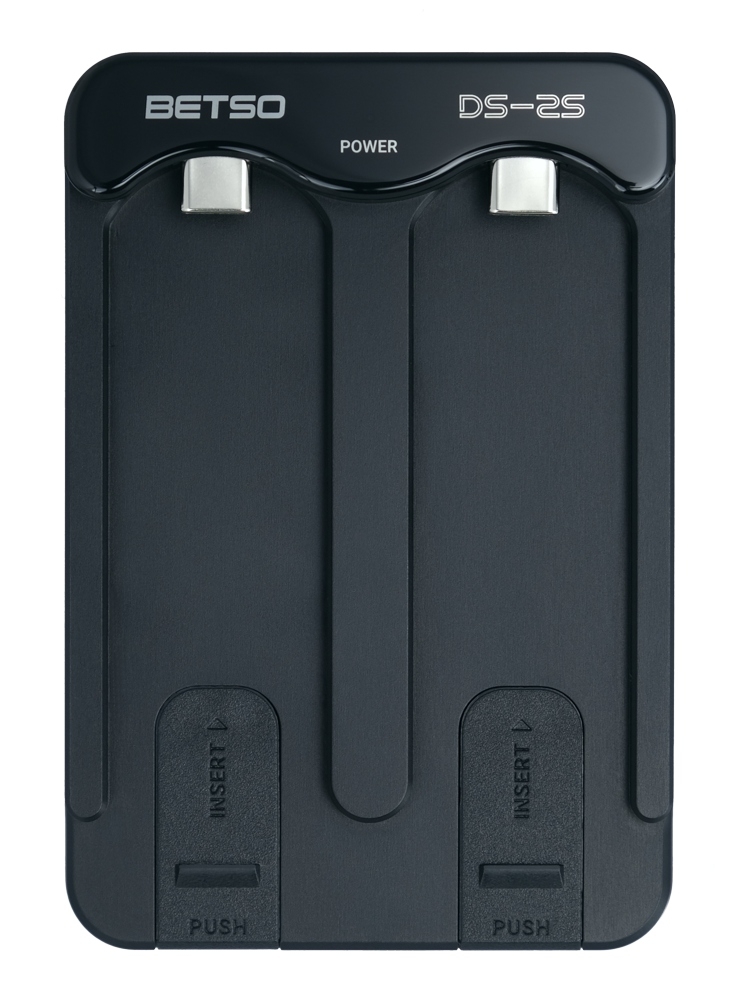

Two USB-C connectors which deliver power to SB CHARGER devices
Tempered glass (unbreakable) panel with blue LED for power indication
A locking mechanism secures the SB CHARGERs once inserted
Slots designed for easy sliding of the SB CHARGERs into place
Anti-slip feet prevent the DS-2S from sliding on flat surfaces
Precise CNC milled black anodized aluminium chassis
Photos
DS-4S with SB CHARGERS

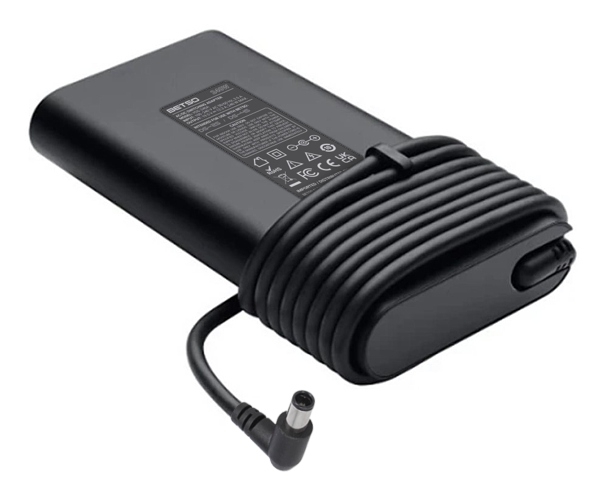

Included 130W power adapter
Technical specifications
Specifications of DS-2S
| Power indication | Blue LED |
| Chassis material | Black anodized aluminium alloy, tempered glass panel |

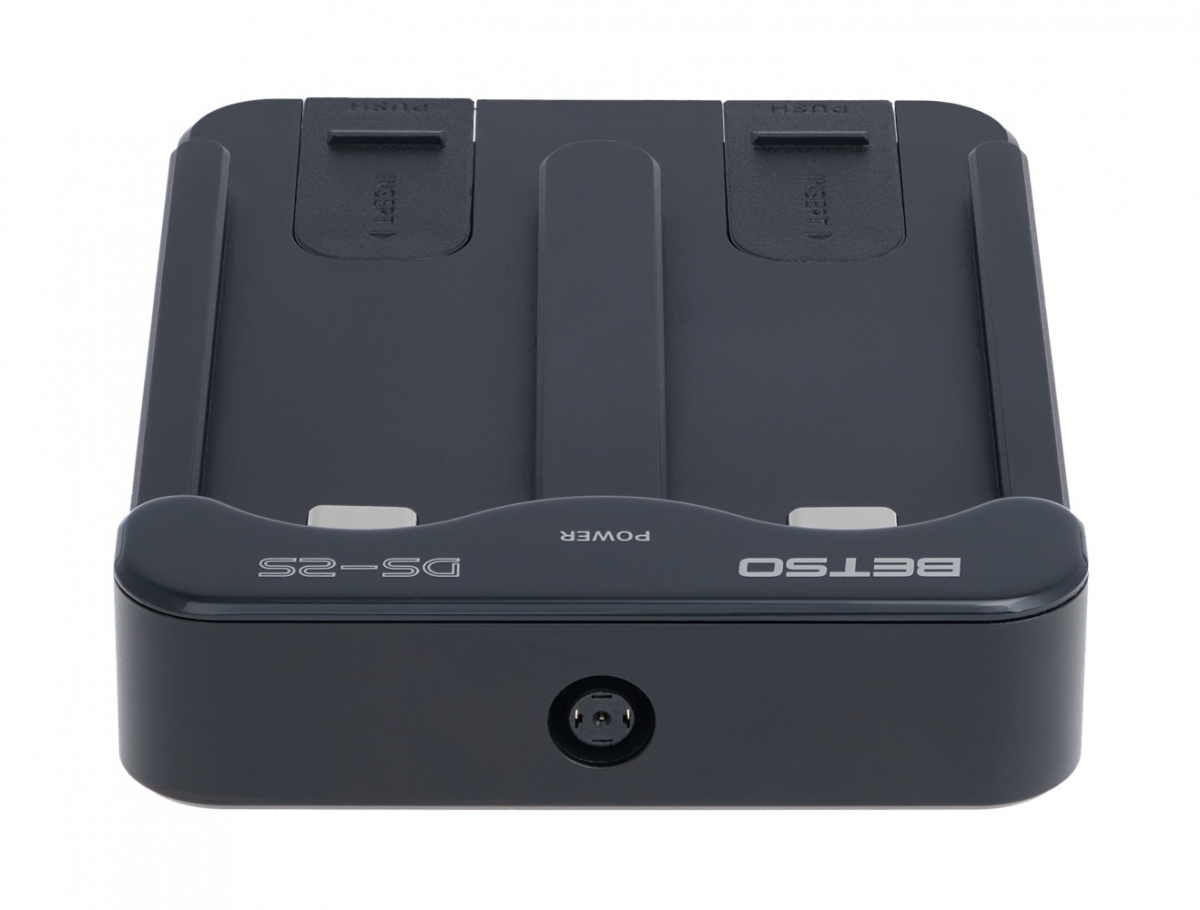

| Input connector | 7.4x5.0 mm |
| Antislip feets | Yes |
| Dimensions (w x h x d) | 103 x 70 x 19 mm (4.05" x 2.76" x 0.75") |
| Manufactured in the | Czech Republic |
Specifications of included power adapter
| Input voltage | 100-240V AC |
| Input frequency | 50/60 Hz |
| Output voltage | 20V |
| Output power | 130W max. |
| Efficiency | >85% |
| Input connector | C5 (standard IEC 60320) |
| Output connector | 7.4x5.0 mm |
| Cable length | 1.5m (4.9 feet) |
| Safety features | Over Current, Over Load, Over Temperature & Short Circuit Protection |
| Included accessory | Main cord with EU / US / UK plug (depending on location) |
| Dimensions of power adapter | 143 x 66 x 23 mm (5.63" x 2.6" x 0.9") |
Downloads
| User manual | |||
|---|---|---|---|
| User manual EN | 06.12.2024 | 250.87 KB | Downloads |
